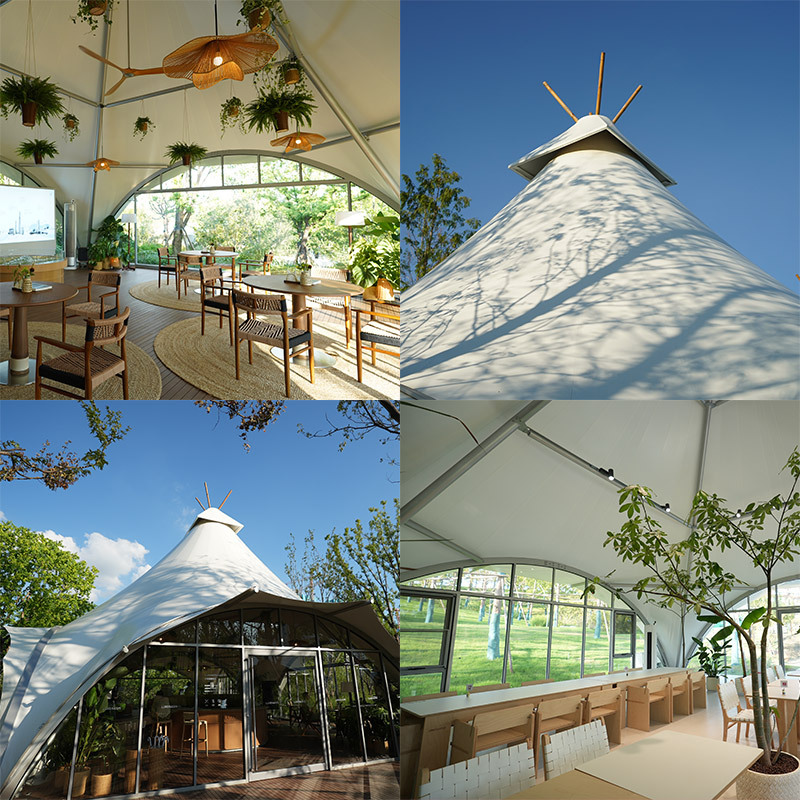

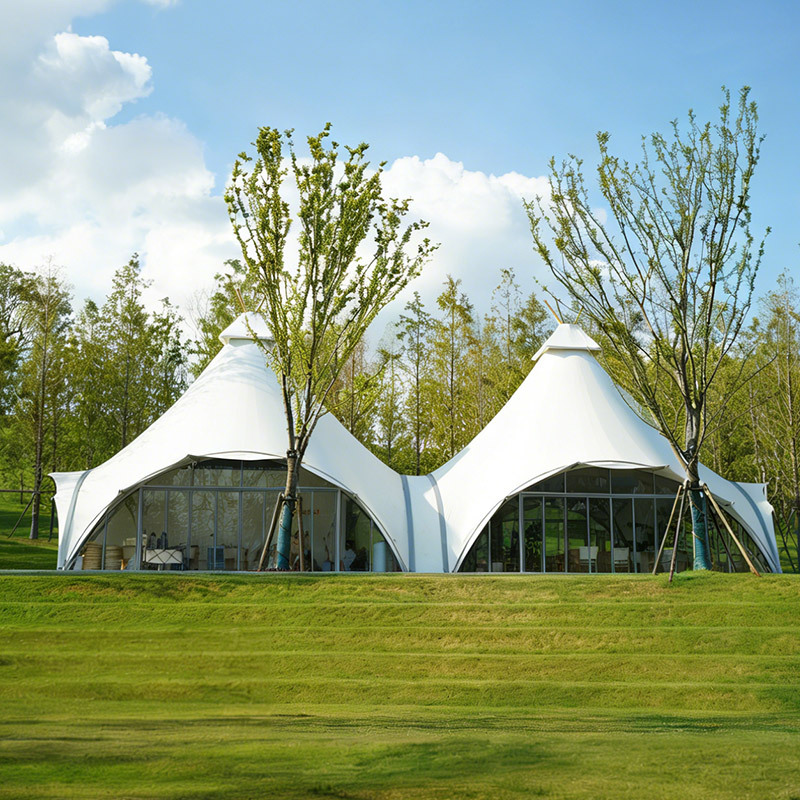

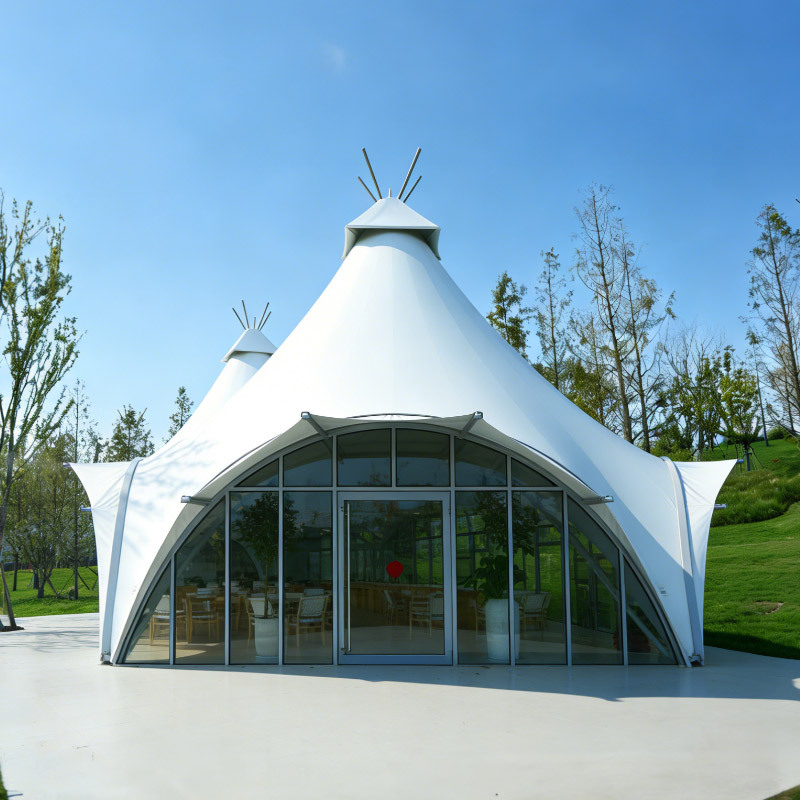

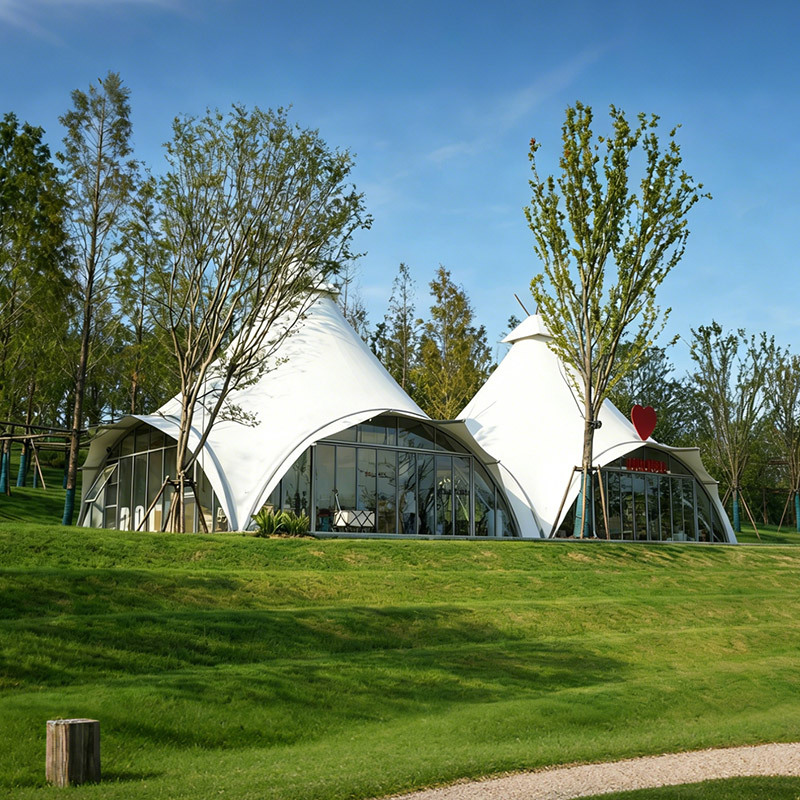

All-Weather Outdoor Commercial Tensile Tent with Full Glass Facade for Forest Park Cafe

• Process Description


• Tent structure: Q235 galvanized steel structure, anti-rust treatment, wind resistance level 8
• Outer tent fabric: High-quality outdoor export-grade PVDF building membrane material 850g/square meter, special sun protection, weather-resistant formula, waterproof water pressure > 0.5 MPa, WP8000+, flame retardant B1, anti-mold, fireproof, anti-ultraviolet.
• Roof sealing + insulation system: 3-layer independent structure, fully sealed and temperature locked, cold-resistant and warm.
• Wall material: 75mm Hard insulation modular wall + viewing tempered glass wall combination
• Windows: Insulated glass windows with broken bridge aluminum, 5+9A+5
• Screen windows: Fully aluminum alloy invisible screen window
• Entry door: Breakable aluminum alloy insulated glass door, 5+9A+5
• Locking membrane hardware accessories: Clamps and pull membrane steel cables, hardware accessories, etc.
•


Specification

• Main dimensions: 21.2m * 11.4m
• Interior dimensions: 18.8m * 9m
• Building area: 242㎡
• Interior area: 169.2㎡
• Terrace area: 0㎡
• Overall height: 8m
•








Babery (Beijing) International Building Technology Co., Ltd. (product Chinese brand: Tent Home, English brand: BABERY), brand abbreviation: Babery Tent Home (BABERY TENT)
